Product Details
Place of Origin: China
Brand Name: TC
Certification: UL, RoSH, REACH, CE
Model Number: UTP-13-6-4P
Payment & Shipping Terms
Minimum Order Quantity: 50 Boxes
Price: Negotiable
Packaging Details: Seaworthy Packing
Payment Terms: Western Union, T/T, L/C, MoneyGram
Type: |
Cat 6 U/UTP |
Cross Spline: |
PE |
Insulation: |
HDPE |
Conductor Material: |
99.99% BC |
Conductor OD: |
24 AWG |
Drain Wire: |
No |
Rip Cord: |
Yes |
Standards: |
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 |
Type: |
Cat 6 U/UTP |
Cross Spline: |
PE |
Insulation: |
HDPE |
Conductor Material: |
99.99% BC |
Conductor OD: |
24 AWG |
Drain Wire: |
No |
Rip Cord: |
Yes |
Standards: |
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 |

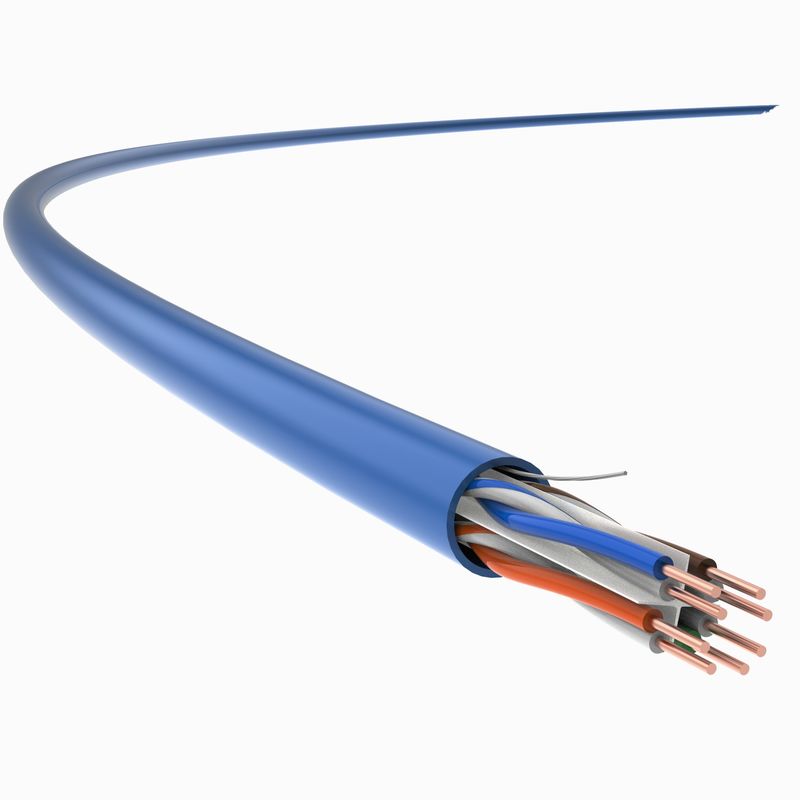

Cat 6 Cable, UTP Cat 6 Network Cable, Bare Copper, 24AWG, 0.53mm, PVC Jacket, Indoor Application
It can be applied in horizontal cabling, as the portion of a telecommunications cabling system that extends from the work area telecommunications outlet to the patch panels in the distribution room, and in residential cabling that extends from the user telecommunications outlet to the patch panels.
TC's UTP-13/23 series, indoor Cat 6 unshielded cabling system invests in new AWG24 conductors with smaller diameter.
Product Features
TC's Cat 6, 24 AWG, 4-pair, unshielded indoor cable adopts the excellent cross-type spline, optimized to greatly enhance technical indicators, including Attenuation and NEXT, which exceed the parameters specified in GB/T 18015.5 (IEC 61156-5) standards and ensure high-speed and stable cable transmission.
Its smaller size makes it easier for field construction. At the same time, it acts on the requirements for high transmission in data center, and structured cabling in new buildings.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details
| Transmission Performance | Cat.6 | TC | |||||
| Frequency (MHz) | 4 | 31.25 | 62.5 | 100 | 200 | 250 | 350 |
| IL Attenuation (dB/100M) | 3.2 | 9.5 | 13.7 | 17.5 | 23.1 | 27.9 | 31 |
| Near End Crosstalk Attenuation (NEXT, dB) | 94.7 | 63.2 | 67.3 | 62.7 | 63.9 | 55.8 | 48.2 |
| NEXT Power and PS NEXT (dB) | 78 | 63.3 | 67.4 | 61.2 | 54.3 | 52.9 | 50.9 |
| Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) | 77 | 78.9 | 84.5 | 83.8 | 84.9 | 70.5 | 60.9 |
| ACR-F Power and PS ACR-F (dB) | 72.8 | 62.8 | 72.4 | 70.9 | 69.7 | 65.3 | 60.3 |
| Return Loss (RL, dB) | 32.8 | 38.6 | 32.8 | 38.6 | 32.5 | 27.8 | 25.3 |
Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.
| Electrical Properties | |
| DC resistance (20℃ ) |
95Ω/km
|
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance |
100Ω±15Ω
|
| Transverse Conversion Loss (TCL) |
≥ 55dB-20×lgf (100-2000MHz)
|
| Delay Skew | 25ns/100m |
| NVP |
65%
|
| Power Over Ethernet (POE) | Enhanced Power Over Ethernet under IEEE 802.3at |
| Mechanical Properties | |
| Minimum Bend Radius (dynamic) |
24mm
|
| Minimum Bend Radius (static) |
48mm
|
| Maximum Installation Tension |
100N
|
| Anti-Extrusion Capacity | 1000N/10cm |
| Anti-Shock Capacity | ≥ 10 times |
| Installation Temperature Range | -0℃ ~+40℃ |
| Working Temperature Range | -20℃ ~+75℃ |
| Flammability (PVC) | |
| PVC Flame Resistance | GB/T 18380.12 (IEC 60332-1-2) |
| Fire Rating CM | UL 1581 |
