Product Details
Place of Origin: China
Brand Name: TC
Model Number: U/FTP-11-6A-4P-V1
Payment & Shipping Terms
Minimum Order Quantity: 50 Boxes
Price: Negotiable
Packaging Details: Seaworthy Packing
Payment Terms: Western Union, T/T, L/C, MoneyGram
Type: |
Cat 6A U/FTP |
Conductor Material: |
99.99% BC |
Conductor OD: |
23 AWG |
Insulation: |
HDPE |
Fire Rating CM/CMR: |
UL 1581/ UL 1666 |
Rip Cord: |
Yes |
Drain Wire: |
Yes |
Length: |
305 M/box |
Type: |
Cat 6A U/FTP |
Conductor Material: |
99.99% BC |
Conductor OD: |
23 AWG |
Insulation: |
HDPE |
Fire Rating CM/CMR: |
UL 1581/ UL 1666 |
Rip Cord: |
Yes |
Drain Wire: |
Yes |
Length: |
305 M/box |
Cat 6A Cable, Cat 6A Network Cable, Cat 6A Ethernet Cable, FTP Cat 6A Cable Application
It can be applied in horizontal cabling, as the portion of a telecommunications cabling system that extends from the work area telecommunications outlet to the patch panels in the distribution room, and in residential cabling that extends from the user telecommunications outlet to the patch panels.
TC's U/FTP-11 series, indoor Cat 6A shielded cabling system, has test frequency up to 600MHZ, higher than other Cat 6A cables with industry standard of 500MHz, especially useful for connecting servers, switches, patch panels, and other devices in the data center, as well as high bandwidth structured cabling system.
In the meantime, it supports Power Over Ethernet (POE/POE+).
Product Features

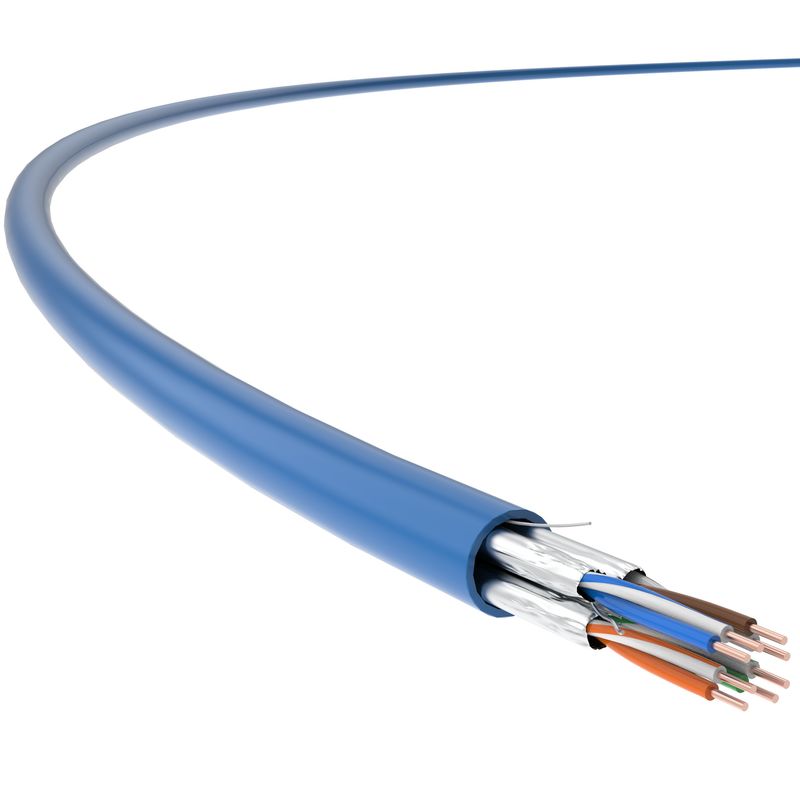

TC's Cat 6, 23 AWG, U/FTP shielded indoor cable adopts the excellent aluminum foil shield for each pair, optimized to greatly enhance technical indicators, including Attenuation, NEXT, and ANEXT, which exceed the parameters specified in GB/T 18015.5 (IEC 61156-5) standards.
It is especially useful in some harsh electromagnetic environments where high-speed and stable cable transmission is required.
At the same time, it acts on the requirements for high transmission in data center, and structured structured cabling in new buildings.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details
| Transmission Performance | Cat.6A | TC | |||||
| Frequency (MHz) | 4 | 100 | 250 | 300 | 450 | 500 | 600 |
| IL Attenuation (dB/100M) | 3.5 | 3.8 | 8.4 | 11.2 | 17.8 | 19.4 | 23.1 |
| Near End Crosstalk Attenuation (NEXT, dB) | 101.1 | 104.7 | 105.3 | 103.2 | 110.4 | 95.6 | 96.6 |
| NEXT Power and PS NEXT (dB) | 98.2 | 99.3 | 100.3 | 99.1 | 102.8 | 93.2 | 92.6 |
| Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) | 95.8 | 91.5 | 87 | 84.1 | 76.4 | 71.6 | 72.6 |
| ACR-F Power and PS ACR-F (dB) | 91.4 | 88.1 | 85.4 | 86.3 | 76.9 | 69.1 | 67.9 |
| Return Loss (RL, dB) | 40.9 | 41.3 | 37.9 | 35 | 30.7 | 22.7 | 19.7 |
Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.
| Physical Specifications | |
| Conductor Size (nominal value) |
4×2×0.57 (AWG23)
|
| Outer Diameter of Cable (nominal value) |
7.5mm
|
| Weight (305m, with package, nominal value) |
21kg
|
| Electrical Properties | |
| DC resistance (20℃ ) |
93.8Ω/km
|
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance |
100Ω±15Ω
|
| Transverse Conversion Loss (TCL) |
≥ 55dB-20×lgf (100-2000MHz)
|
| Delay Skew | 25ns/100m |
| NVP |
69%
|
| Power Over Ethernet (POE) | Enhanced Power Over Ethernet under IEEE 802.3at |
| Mechanical Properties | |
| Minimum Bend Radius (dynamic) |
30mm
|
| Minimum Bend Radius (static) |
60mm
|
| Maximum Installation Tension | 100N |
| Anti-Extrusion Capacity | 1000N/10cm |
| Anti-Shock Capacity | ≥ 10 times |
| Installation Temperature Range | -0℃ ~+40℃ |
| Working Temperature Range | -20℃ ~+75℃ |
| Flammability (PVC) | |
| PVC Flame Resistance |
GB/T 18380.12 (IEC 60332-1-2)
|
| Fire Rating CM |
UL 1581/ UL 1666
|
| Flammability (LSZH) | |
| Flame Resistance (of single wire) | GB/T 18380.12 (IEC 60332-1-2) |
| Flame Resistance (of bunched wires) | GB/T 18380.35 (IEC 60332-3-24) |
| Smoke Density | GB/T 17651 (IEC 61034-1/-2) |
| Hazardous Halogen Gas | GB/T 17650.1/.2 (IEC 60754-1/-2) |
