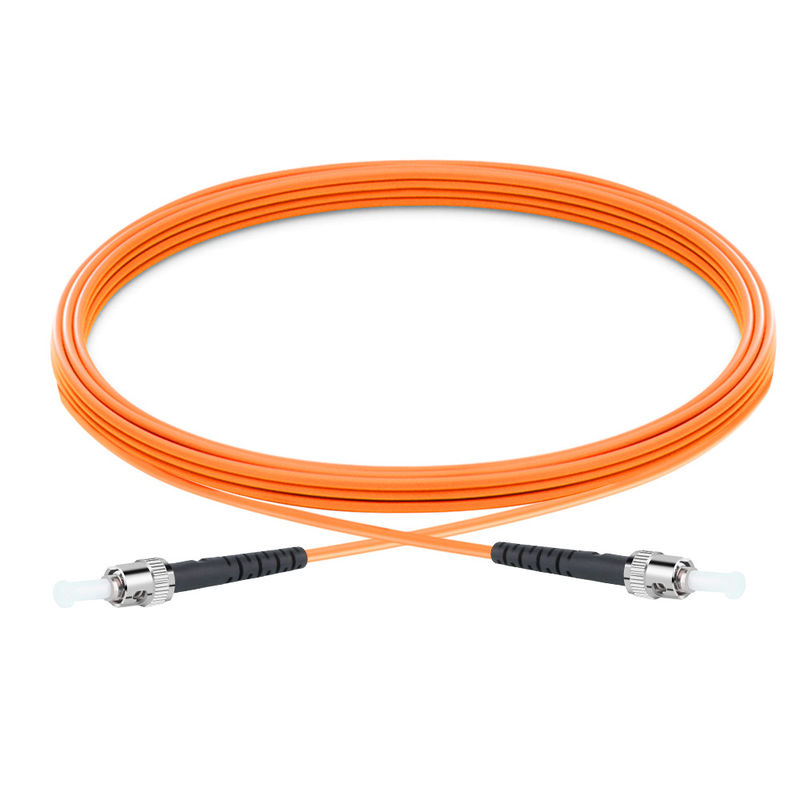

Multi Mode OM2 Fiber Optic Patch Cord ST-ST Simplex/Duplex

Product Details

Place of Origin: China

Brand Name: TC

Certification: UL, RoSH, REACH, CE

Model Number: FJ-ST-ST-A1a-1M

Payment & Shipping Terms

Get Best Price
Highlight:

A1a Fiber Optic Patch Cord

,

ST RoSH Fiber Optic Patch Cord

,

A1a multi mode patch cord

Length:
Customized
Cable O.D.:
2.0/3.0mm
Fiber Type:
MM, A1a, OM2
Core:
Simplex/Duplex
Sheath:
PVC
Adaptor:
ST
Insertion Loss:
≤0.3dB
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Length:
Customized
Cable O.D.:
2.0/3.0mm
Fiber Type:
MM, A1a, OM2
Core:
Simplex/Duplex
Sheath:
PVC
Adaptor:
ST
Insertion Loss:
≤0.3dB
Standard:
IEC 60332-3C, IEC 60754-2, IEC 61034-2
Multi Mode OM2 Fiber Optic Patch Cord ST-ST Simplex/Duplex

Fiber Optic Patch Cord, Fiber Optic Jumper, Fiber Patch Cable, ST-ST, Multi Mode, OM2​ Applications


In optical fiber cabling system, the fiber optic patch cord provides connections between hardware equipment and devices, or between devices and optical fiber links.



Included with optical fiber patch cord are singlemode, multimode and 10G multimode. Generally, singlemode cable is yellow while its connector and protection sleeve is blue; multimode is orange while its connector and protection sleeve is cream or black.




Product Features


Pre-termination and testing in factories to ensure its transmission performance;



  • Fast network configuration to speed up installation;
  • Fire rating and flame resistance in accordance with IEC 60332-3C;
  • Non corrosive gas emission in accordance with IEC 60754-2;
  • Low smoke zero halogen emission in accordance with IEC 61034-2;
  • With standard ST adapters;
  • 1- and 2-core, all available as custom tailored products;
  • Insertion Loss < 0.3dB;
  • Return Loss > 50dB;
  • Custom tailored services for length, quantity of cores and physical structures.




Application Standards


YD/T 926.3, IEC 60332-3C, IEC 60754-2, IEC 61034-2





Technical Details



  Optical Properties
Insertion
Loss
Interchangeability Return Loss
≤ 0.3dB ≤ 0.2dB APC singlemode ≥ 60dB PC singlemode ≥ 50dB PC multimode ≥ 35dB





  Mechanical Properties
Quantity of Cores 1 2
Tensile Strength 150 300
Crush Resistance 15 30
Min. Bend Radius during
Installation (mm)
20 Times the Optical Fiber Diameter 20 Times the Optical Fiber Diameter
Min. Bend Radius during
Operation (mm)
10 Times the Optical Fiber Diameter 10 Times the Optical Fiber Diameter
Installation Temperature
Range (℃ )
-5 to +50 -5 to +50
Operation Temperature
Range (℃ )
-20 to +60 -20 to +60
Delivery and Storage
Temperature Range (℃ )
-25 to +70 -25 to +70
