Product Details
Place of Origin: China
Brand Name: TC
Certification: UL, RoSH, REACH, CE
Model Number: FJ-LC-LC-A1b-1M
Payment & Shipping Terms
Length: |
Customized |
Cable O.D.: |
2.0/3.0mm |
Fiber Type: |
MM, A1b, OM1 |
Core: |
Simplex/Duplex |
Sheath: |
PVC |
Adaptor: |
LC |
Insertion Loss: |
≤0.3dB |
Standard: |
IEC 60332-3C, IEC 60754-2, IEC 61034-2 |
Length: |
Customized |
Cable O.D.: |
2.0/3.0mm |
Fiber Type: |
MM, A1b, OM1 |
Core: |
Simplex/Duplex |
Sheath: |
PVC |
Adaptor: |
LC |
Insertion Loss: |
≤0.3dB |
Standard: |
IEC 60332-3C, IEC 60754-2, IEC 61034-2 |

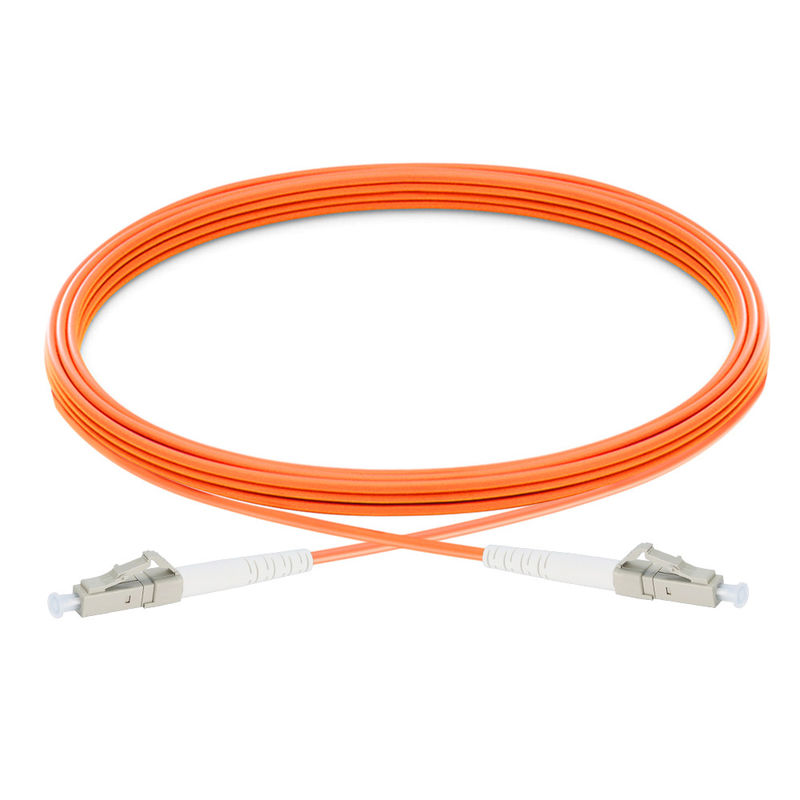

Fiber Optic Patch Cord, Fiber Optic Jumper, Fiber Patch Cable, LC-LC, OM1 Applications
In optical fiber cabling system, the fiber optic patch cord provides connections between hardware equipment and devices, or between devices and optical fiber links.
Included with optical fiber patch cord are singlemode, multimode and 10G multimode. Generally, singlemode cable is yellow while its connector and protection sleeve is blue; multimode is orange while its connector and protection sleeve is cream or black.
Product Features
Pre-termination and testing in factories to ensure its transmission performance;
Application Standards
YD/T 926.3, IEC 60332-3C, IEC 60754-2, IEC 61034-2
Technical Details
| Optical Properties | ||||
| Insertion Loss |
Interchangeability | Return Loss | ||
| ≤ 0.3dB | ≤ 0.2dB | APC singlemode ≥ 60dB | PC singlemode ≥ 50dB | PC multimode ≥ 35dB |
| Mechanical Properties | ||
| Quantity of Cores | 1 | 2 |
| Tensile Strength | 150 | 300 |
| Crush Resistance | 15 | 30 |
| Min. Bend Radius during Installation (mm) |
20 Times the Optical Fiber Diameter | 20 Times the Optical Fiber Diameter |
| Min. Bend Radius during Operation (mm) |
10 Times the Optical Fiber Diameter | 10 Times the Optical Fiber Diameter |
| Installation Temperature Range (℃ ) |
-5 to +50 | -5 to +50 |
| Operation Temperature Range (℃ ) |
-20 to +60 | -20 to +60 |
| Delivery and Storage Temperature Range (℃ ) |
-25 to +70 | -25 to +70 |
