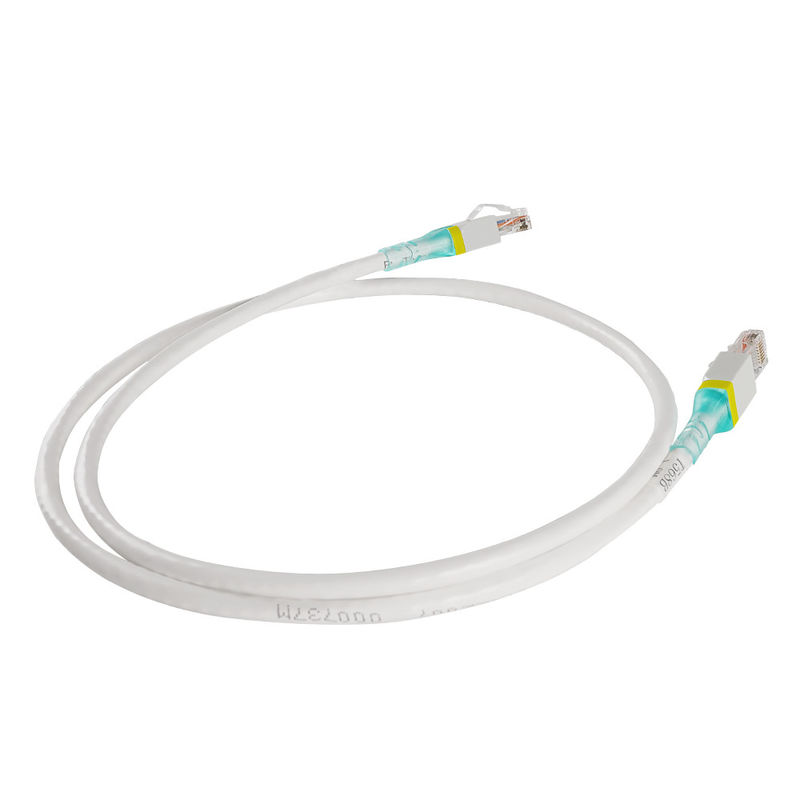

RJ45 Patch Cord CAT6 UTP 24AWG Bare Copper LSZH Jacket

Composite RJ45 Patch Cord, CAT6 UTP LSZH,, 1m RJ45 patch cord, 24AWG Stranded Application

Magic series, RJ45 Composite Patch Cord provides signal transmission in the telecommunications cabling, such as data, voice, audio and images. When integrated with copper cables and jacks, it helps form the transmission channel for the structured cabling system and connect the information inlet/outlet and active devices (switches, computers, etc.).

TC's Magic series composite patch cord can be categorized as standard one and ultrafine one, including but not limited to high-performance general patch cord, patch cord with pull rod, patch cord with lock, matched port lock.

The Cat6/Cat6a copper patch cord meets and even exceeds IEC 61935-2 standards. With bandwidth up to 350MHz (for Cat6 patch cord) and 600MHz (for Cat6a patch cord), coupled with Cat6/Cat6a links, it supports Class D/E/EA standard (for Cat6a patch cord) applications as well as the Ethernet applications, such as 10G Base-T, 5G Base-T, 2.5G Base-T, 1G Base-T, 1G Base-TX, and 100 Base-T. It also supports enhanced Power Over Ethernet (POE+) under IEEE 802.3at.

TC Patch Cord Features

• Magic series composite patch cord invests PC & TPU molding technology in both outer housing and rear jacket. Hardness in front and softness at back ensure the minimum bend radius.
• General patch cord houses RJ45 ports of different depths and its bending clip helps maintain and manage LAN cables.
• The special interior is designed in a barbed structure for cable stability after installation.
• All patch cords contain detachable color rings for port identification.

Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

Technical Details
