Data Center UPS Modular UPS Rack Mounted 10-90KVA

Product Details

Place of Origin: China

Brand Name: TC

Model Number: TCRM060/10X

Payment & Shipping Terms

Get Best Price
Highlight:

Data Center UPS

,

Rack Mounted UPS

,

10-90KVA UPS

Range Of Power:
10-90 KVA
Operating Methods:
3 In 3 Out, 3 In Single Out, 1 In-1 Out, Online Double Conversion
Input Power Factor:
> 0.99
Output Power Factor:
1
Screen:
9-inch Color Touchscreen
Input Frequency:
50/60 Hz
Output Rated Frequency:
50/60 Hz
Communication Interface:
RS232, RS485, Dry Contacts, SNMP Cards (option), Emergency Shutdown
Range Of Power:
10-90 KVA
Operating Methods:
3 In 3 Out, 3 In Single Out, 1 In-1 Out, Online Double Conversion
Input Power Factor:
> 0.99
Output Power Factor:
1
Screen:
9-inch Color Touchscreen
Input Frequency:
50/60 Hz
Output Rated Frequency:
50/60 Hz
Communication Interface:
RS232, RS485, Dry Contacts, SNMP Cards (option), Emergency Shutdown
Data Center UPS Modular UPS Rack Mounted 10-90KVA

Product Application

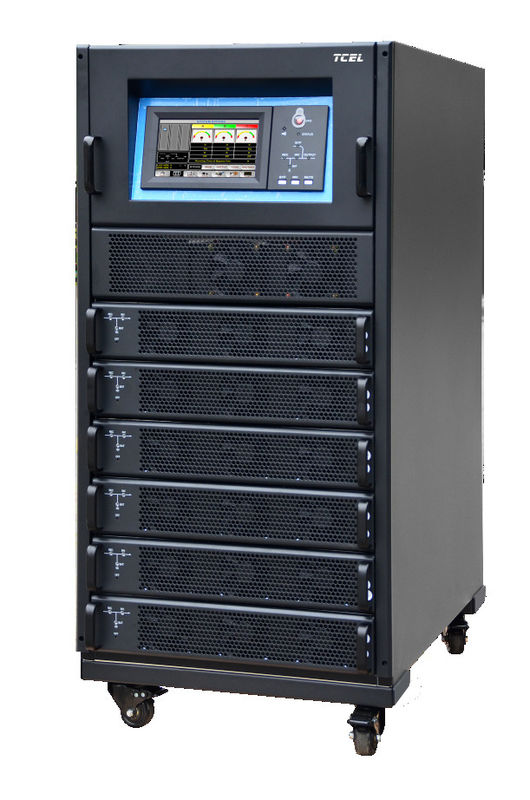

TCRM series modular UPS power, the industry leading, all-digital power distribution product, collects the most advanced technology in power electronics and automatic control, thus resulting in breakthrough improvements in power reliability, availability and maintainability of the critical equipment.


It integrates the technical features of traditional tower-type with the need of modern modular server rooms, ensuring modular design together with high reliability of the system.




Range of Power / Working Methods


10-90kVA, 3 in 3 out, 3 in single out, 1 in-1 out (TCRM020/10X, TCRM040/10X, TCRM060/10X), online double conversion




Product Features



  • Smart Protection Solutions


TCRM series modular UPS power distribution has both software and hardware in the power modules and has its system under protection. When possible problems of voltage, current, thermal performance and short circuits occur, rapid and efficient protection can be provided so as to ensure the whole system's security and reliability.


  • Full Digital Control


With 32-bit high-speed DSP digital control, the communication system introduces the most advanced CAN-BUS technology, making its performance more stable and safer.


  • Core Power Devices with an Integrated Packaging Structure of IGBT Modules


TCRM series modular UPS features an integrated packaging of IGBT modules, greatly improving the reliability of core devices. It avoids the uneven flow and voltage stress caused by the discrete IGBT parallel approach, and its unique isolation duct design significantly improves its adaptability to the environment.


  • Smart Battery Management Solutions


Each power module has a separate, digital high-power charger built in, provision of 20% power capacity for charging. Charge and discharge circuits are in DSP digital control, for excellent battery management and extended battery life.





  • Green Energy Conservation


Input power factor is more than 0.99, input harmonics less than 3%, and overall efficiency up to 95% or more; and its smart sleep function effectively improves the efficiency of the entire UPS.


  • Powerful Remote Network Management Solutions


SNMP network management card allows for remote monitoring and control of the UPS system via the network, and for simultaneous remote monitoring of multiple devices via the matching remote control box.


  • "Zero Threshold" of Maintenance


It is maintained just in minutes, and adopts autonomous identification of module IDs without need to manually set the program. Critical waveform recording makes it convenient for fault analysis.


  • Battery Cold Start


The system comes with a cold start with batteries to power on (for 20 kVA/25 kVA/30 kVA/45 kVA/50 kVA power module).


  • Hot-Swapping Static Bypass Monitoring Module


Monitoring and static bypass modules are hot-swappable, with each power module auto-controlled and auto operated to avoid single point failure.







Technical Specifications

Model TCRM
020/10X
TCRM
040/10X
TCRM
060/10X
TCRM
030/15X
TCRM
045/15X
TCRM
090/15X
Capacity 20kVA 40kVA 60kVA 30kVA 45kVA 90kVA
Main Input Terminal Connection three phase + N + PE
Input Voltage 380/400/415VAC (Line-Line) 220/230/240VAC (phase voltage)
Input Frequency 50/60Hz
Power Factor >0.99
Current Distortion Rate THDi<4%
Range of Voltage 304-478Vac (Line-Line) at full load; 304V-228Vac (Line-Line) linear derating from 100% to 75%
Frequency of Voltage 40-70Hz
Battery Voltage of Battery ±240VDC (32-44 cells adjustable)
Charging Power 20%* Active power
Charging Voltage Accuracy ±1%
Bypass Voltage of Bypass 380V/400V/415V (Line-Line), 220V/230V/240V (phase voltage)
Range of Voltage Default -20%-+15%; -40%-+25% Optional
Overload Capacity 125% long time operation; 130% last for 10 minutes;
150% last for 1 minute; 150% > load last for 300ms
110% long time operation;
110% < load < 130% last for 10 minutes;
130% < load < 150% last for one minute;
150% > load last for 300ms
Output Rated Output Voltage 380/400/415VAC (Line-Line); 220/230/240VAC (phase voltage)
Rated Frequency 50/60Hz
Output Power Factor 1
Voltage Accuracy 1.50%
Output Dynamic Response <5% (20%-80%-20% load step)
Dynamic Recovery Time <20ms (0%-100%-0% load step)
Output Total Harmonic Distortion <1% (linear load) , <5.5% (nonlinear load)
Inverter Overload 102% long time operation; 110% transfer to bypass after 1 hour; 125% transfer to bypass after 10 minutes;
150% transfer to bypass after 1 minute; > 150% transfer to bypass after 200 ms
Frequency Accuracy 0.10%
Range of Tracking Adjustable, ±0.5Hz-±5Hz, Default ±3Hz
Speed of Tracking Adjustable, 0.5Hz/S-±3Hz/S, Default 0.5Hz/S
Peak Ratio 3:01
Three-Phase Accuracy 120°±0.5°
System Efficiency Main mode: 95% Max; Economic mode: 98%; Battery mode: 94.5%
Screen LCD+LED+color touchscreen, 9-inch
Language Chinese, traditional Chinese, English, Russian, Italian, Spanish, German
Protection Rating IP20
Communication Interface RS232, RS485, dry contacts, SNMP cards (option), emergency shutdown
Wiring Methods Back and down wiring, optional Down wiring Back and down wiring, optional Down wiring
Working Environment 0-40℃ (working temperature) ; -25℃~70℃ (storage temperature) ; 0-95% (no condensation)
Noise (dB) / m <56dB
Type of Cabinet 2-modular cabinet 4-modular cabinet 6-modular cabinet 2-modular cabinet 3-modular cabinet 6-modular cabinet
Size (W*D*H) (mm) Main Body 485*697*398 (7U) 485*697*575 (11U) 485*751*1033 (22U) 485*697*398 (7U) 485*751*575 (11U) 485*751*1033 (22U)
Main Body (put into server rack) 485*697*308 (7U) 485*697*485 (11U) 485*751*928 (21U) 485*697*308 (7U) 485*751*485 (11U) 485*751*928 (21U)
Module 436*590*85mm (2U)
Weight (kg) Main Body (with modules) 73kg 113kg 175kg 73kg 119kg 175kg
Module 15.3kg (PM10X) 15.5kg (PM15)
