Multimedia Box Functional Accessories Voice Module 2-in/8-out

Product Details

Place of Origin: China

Brand Name: TC

Certification: GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568.2-D

Model Number: TC-

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Payment Terms: L/C, T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Multimedia Box Voice Module, Voice Module 2in, Multimedia Box Functional Accessories


Humidity Range:	10% To 90% Non-condensing	Splice Tray:	Up To The Most 16 Splices
Application Standards:	YD/T926.3; YD/T778-2011; TIA/EIA568	Optical Interface:	FC, ST, SC
Standard:	SNMP, TCP/IP	Socket Conductive Parts:	Phosphor Copper
Base Size:	252×114×75 Mm	Space Utilization:	1U
Smart Battery:	Yes	Flammability:	GB/T 5169.11
Error Rate:	＜ 10-9	Axial Tension:	More Than 250 N
Insertion Loss:	≤ 0.35dB (repeatability Included)	Coil Material:	Brass Forging Aluminum Fin
Video Interface:	PCM Coding

Humidity Range:	10% To 90% Non-condensing
Splice Tray:	Up To The Most 16 Splices
Application Standards:	YD/T926.3; YD/T778-2011; TIA/EIA568
Optical Interface:	FC, ST, SC
Standard:	SNMP, TCP/IP
Socket Conductive Parts:	Phosphor Copper
Base Size:	252×114×75 Mm
Space Utilization:	1U
Smart Battery:	Yes
Flammability:	GB/T 5169.11
Error Rate:	＜ 10-9
Axial Tension:	More Than 250 N
Insertion Loss:	≤ 0.35dB (repeatability Included)
Coil Material:	Brass Forging Aluminum Fin
Video Interface:	PCM Coding

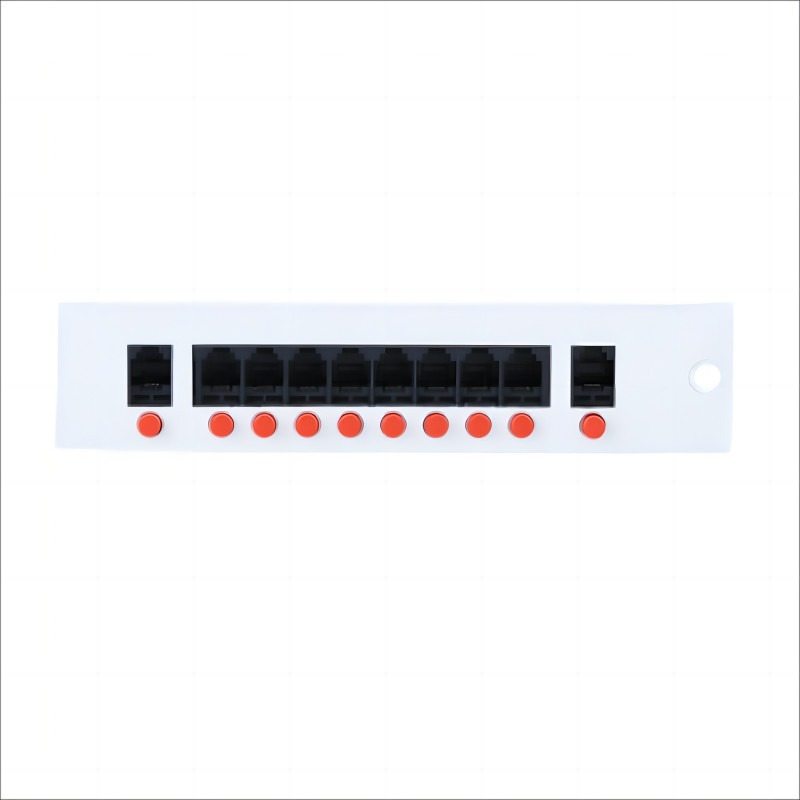

Multimedia Box Functional Accessories Voice Module 2-in/8-out

Multimedia Box Functional Accessories Voice Module 2-in/8-out

Product Application

Voice Module is mainly used in TC's household multimedia boxes, providing various branch ports for voice cabling.

Product Features

Non-confidential voice module provides two 1-in/4-out RJ11 ports. All the five ports are connected in parallel, and combined into 1 number/8 extensions or 2 numbers/4 extensions.

Confidential voice module provides 1-in/8-out or 2-in/8-out RJ11 ports, through which the inside line can be switched to any outside line by touching a single button. No cross-talk occurs among the extensions, and conversations are relatively confidential, which ensures one-to-one communication and no interference from the third party. That demonstrates that phone calls are either in a straight line or in the extensions among which the calls can be freely switched. When two phone lines are connected, the output port ratio of phone 1 and phone 2 can be freely switched regardless of

positive and negative poles due to an automatic polarity conversion circuit inside.

These two voice modules have high density ABS outer housing featuring high gloss, good flexibility, impact resistance and aging resistance. The FR4 high frequency PCB ensures low attenuation in signal transmission.
